DTI-773 Impingement Conveyor Oven
Customer directive
Our customer wanted to create an indexing single part flow inert atmosphere production furnace system to match, and seamlessly integrate into, the customer’s entire existing manufacturing process at a production rate of 45 seconds part to part. The customer’s then existing process included inefficient batch furnace staging of parts at this point in the process.
Description

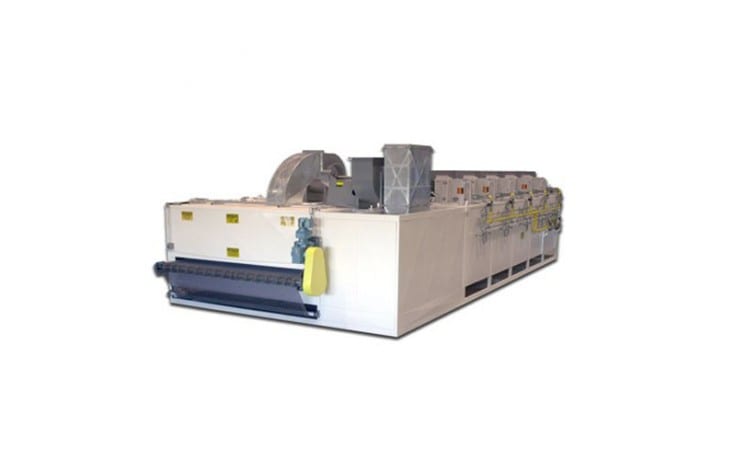

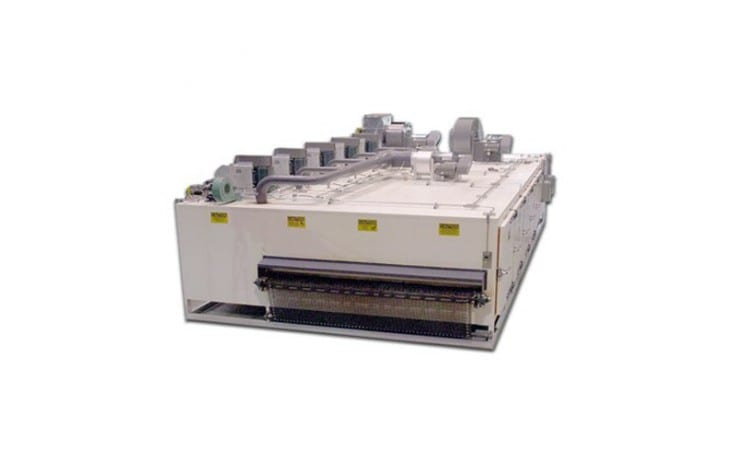

The DTI-773 conveyor type oven cures automotive disc brake pads. This indexing system is designed to work in conjunction with a ten-press automated system, providing continuous operation capabilities. As parts are pressed, an automated shuttle system delivers the parts to the entrance point of the conveyor oven. Many parts are placed across the width of the belt for thermal processing. Conveyor oven speed is set to match press production speed to create a continuous process.
Energy efficiency is maximized by immediately curing the parts after press forming. The energy (heat) put into the parts during the press forming is retained. Parts receive additional heating in the conveyor oven, completing the cure cycle. The conveyor oven design also provides even heat distribution to every part in the process. These factors allow the parts to be cured in this system in approximately 25% of the time required for batch process, with more consistent results. The conveyor oven includes five independent zones of temperature control. Parts are cooled prior to exiting the oven system.
Specifications
| Chamber External Dimensions | 30′-4″ L x 14′-4″ W x 6′-6″ H (9246mm x 4369mm x 1981mm) |
| Conveyor Usable Size | 29′-4″ L x 8′-10″ W x 0′-6″ H (8941mm x 2692mm x 152mm) |
| Insulation Thickness | 6″ (152mm) |
| Conveyor Extensions | 0′-8″ (203mm) Entrance End, 1′-0″ (305mm) Exit End |
| Conveyor Type | Flat Wire Belt |
| Conveyor Control | PLC controlled variable speed operation |
| Heat Source | Five Modulating Natural Gas Fired Burners |
| Design Operating Temperature | 200°F – 662°F (93°C – 350°C) |
| Maximum Operating Temperature | 675°F (357°C) |
| Operating Voltage | 480-volt / 3-phase / 60-hertz |
| Control | PLC control of all functions |
Alternative capabilities
Davron Technologies, Inc. provides process specific industrial inert atmosphere oven applications, including the following:
- Industries Served: Automotive, Pharmaceutical / Medical, Aerospace, Glass, Composites
- Materials/Parts Processed: Castings, Glass, Plastics, Steel, Engine Components, Cast Steel/Aluminum
- Process Applications: Inert Stress Relieving, Inert Atmosphere Annealing, Inert Atmosphere Batch, Inert Atmosphere Conveyor/Continuous
