DTI-327 Baking Conveyor Oven
Customer directive
Our customer wanted to create an indexing single part flow inert atmosphere production furnace system to match, and seamlessly integrate into, the customer’s entire existing manufacturing process at a production rate of 45 seconds part to part. The customer’s then existing process included inefficient batch furnace staging of parts at this point in the process.
Description

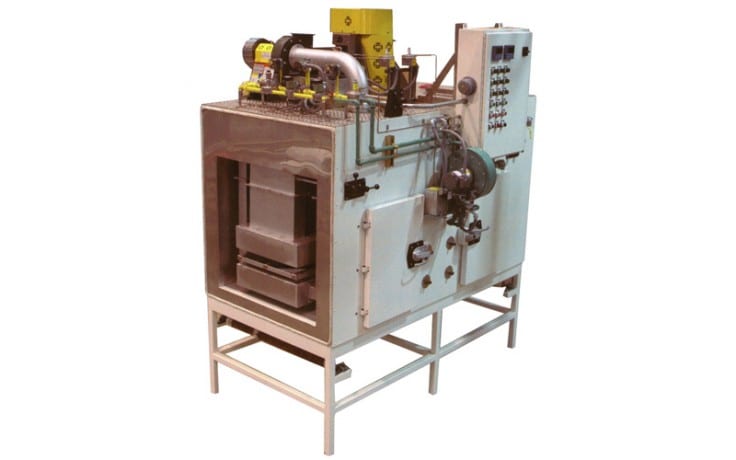

The DTI-327 industrial oven was constructed as an extension to an existing oven used to bake snack food. The original oven was supplied by a company in England. This oven utilizes the existing conveying system, and is provided with a plenum system to provide airflow from both the top and bottom of the product, allowing the product to be baked from both sides.
Specifications
| Overall Dimensions | 8′-0″ L x 4′-4″ W x 7′-4″ H (2438mm x 1321mm x 2235mm) |
| Insulation Thickness | 5″ (127mm) |
| Heat Source | Single full modulating natural gas burner package |
| Maximum Operating Temperature | 500°F (260°C) |
| Fans | One (1) circulation fan, One (1) exhaust fan |
| Airflow | Provided from top down above the product and bottom up from below the product |
| Operating Voltage | 480-volts / 3-phase / 60-hertz |
| Miscellaneous | Digital indicating temperature controller |
| Digital indicating over temperature controller |
Alternative capabilities
Davron Technologies, Inc. provides process specific industrial inert atmosphere oven applications, including the following:
- Industries Served: Automotive, Pharmaceutical / Medical, Aerospace, Glass, Composites
- Materials/Parts Processed: Castings, Glass, Plastics, Steel, Engine Components, Cast Steel/Aluminum
- Process Applications: Inert Stress Relieving, Inert Atmosphere Annealing, Inert Atmosphere Batch, Inert Atmosphere Conveyor/Continuous
