DTI-233 Inert Atmosphere Batch Oven
Customer directive
Our customer wanted to create an indexing single part flow inert atmosphere production furnace system to match, and seamlessly integrate into, the customer’s entire existing manufacturing process at a production rate of 45 seconds part to part. The customer’s then existing process included inefficient batch furnace staging of parts at this point in the process.
Description

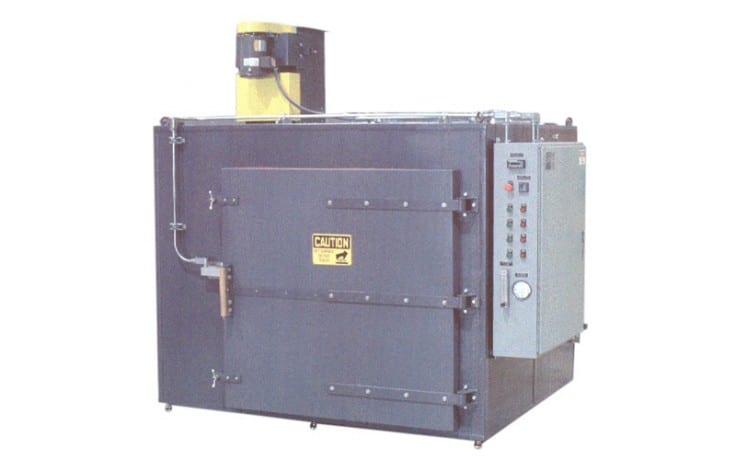

The DTI-233 inert atmosphere batch oven is used in the carbonizing process of a ceramic product. This industrial oven operates under an inert atmosphere (nitrogen) and a positive pressure of 1.5″ WG. This oven utilizes a rack system that contains five (5) product shelves. The product is put on the shelves and loaded into the inert atmosphere oven. The oven is designed for a maximum capacity of 1,500 pounds of product.
Specifications
| Overall Dimensions | 7′-2″ L x 6′-0″ W x 6′-8″ H (2184mm x 1829mm x 2032mm) |
| Interior Dimensions | 4′-0″ L x 3′-0″ W x 3′-0″ H (1219mm x 914mm x 914mm) |
| Insulation Thickness | 10″ (254mm); 2″ (51mm) of cerwool and 8″ (203mm) of mineral wool |
| Heat Source | Single electric heater controlled by SCR |
| Maximum Operating Temperature | 1,250°F (677°C) |
| Airflow | Horizontal cross flow |
| Operating Voltage | 480-Volt / 3-phase / 60-hertz |
| Control | Programmable controller capable of storing multiple ramp/soak programs. |
| Fans | One (1) circulation fan |
| Miscellaneous | Pressure gauge for monitoring chamber pressure |
| Oven utilizes flow meter to control the flow rate of inert gas entering the chamber | |
| Interior of oven is constructed of 304 stainless steel |
Alternative capabilities
Davron Technologies, Inc. provides process specific industrial inert atmosphere oven applications, including the following:
- Industries Served: Automotive, Pharmaceutical / Medical, Aerospace, Glass, Composites
- Materials/Parts Processed: Castings, Glass, Plastics, Steel, Engine Components, Cast Steel/Aluminum
- Process Applications: Inert Stress Relieving, Inert Atmosphere Annealing, Inert Atmosphere Batch, Inert Atmosphere Conveyor/Continuous
