DTI-1490 Preheat Oven
Customer directive

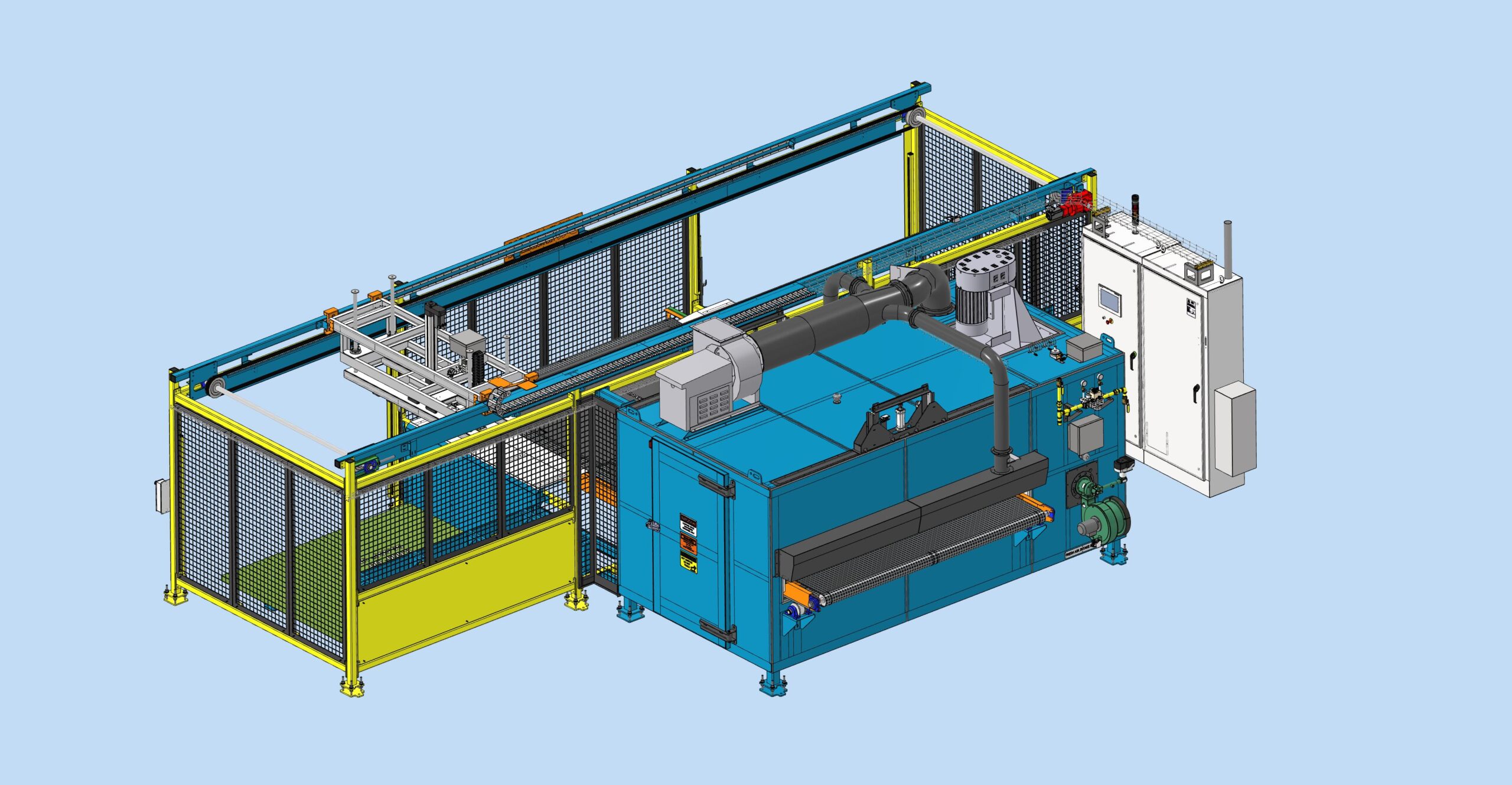

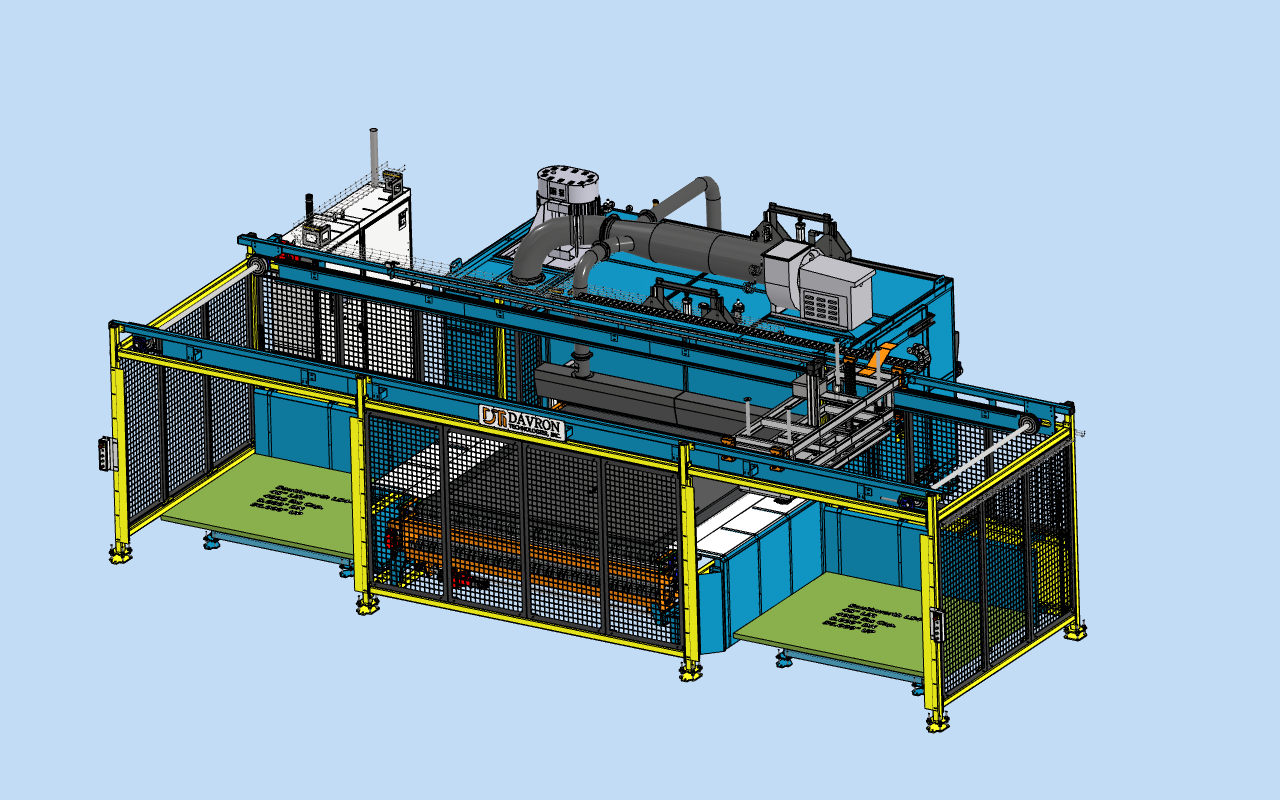

Davron’s customer was looking for an oven that would preheat an automotive carpet (noise, vibration, and harshness) product prior to being formed. A two-position pick and place system was included on the load end of the system to accommodate multiple product pick locations. This allows a stack of product to be picked from while the other pick location is being reloaded with product, reducing change over time.
Description
The general equipment sequence is for the pick and place to pick a part off of a stack that has been loaded on to a lift table. The picked part is then placed onto the conveyor belt to be indexed into the heated chamber for process. There are two pick/load positions on the load end of the equipment. The oven includes a single zone of heat, with variable temperatures and dwell times based on the product being processed. Once the part has been heated, the conveyor will shuttle forward to transfer the part from the oven to the mold press. The conveyor will retract back into the oven to allow the press to close. At this point the automated load system will place a new part on the conveyor belt, and the process will repeat.
Specifications
| Product Being Processed | Air-lay cotton shoddy with backing |
| Overall System Dimensions | 18′-0″ L x 30′-0″ W x 10′-6″ H |
| Heated Chamber Dimensions | 7′-3″ L x 14′-0″ W x 6′-6″ H |
| Type of Heating System | Natural Gas Burner |
| Design Operating Temperature | 300°F (149°C) |
| Maximum Operating Temperature | 500°F (260°C) |
| Product Support | Flatwire conveyor belt |
| Controls | PLC control with operator HMI, UL listed control enclosure |
Alternative capabilities
Davron Technologies, Inc. designs and manufactures ovens of this type to meet many unique process requirements, including but not limited to, the following:
- Airflow: Vertical top-down or bottom-up, side-to-side
- Industries Served: Automotive Carpets/NVH Materials
- Materials Processed: Carpets, Blended materials
- Heating Systems: Electric or gas fired
